AI Agent Orchestration on Azure: Architecture & Tips
Key Takeaways
Orchestration ensures AI agents don’t work in silos but collaborate to achieve business outcomes effectively and at scale.
Azure supports both code-first and low-code orchestration patterns, enabling flexibility for technical and business users.
Task decomposition helps break down complex workflows into manageable parts that specialized AI agents can handle.
Azure Functions and Logic Apps enable efficient service invocation, automating tasks with minimal infrastructure management.
Strong security practices—like RBAC, Key Vault, and network isolation—are critical for safeguarding agent-based systems.
Innovative automation heavily relies on the orchestration of artificial intelligence agents, enabling independent systems to work together across various environments. In complex ecosystems that heavily utilize AI agents, effective collaboration, task delegation, and timely escalation are critical.
Orchestration is the discipline that makes sure that AI agents do not function in silos but instead work together to make sure that all the business outcomes are delivered with agility and precision. One of the primary objectives of orchestration is to coordinate with multi-agent task flows. There are several instances where companies encounter situations in which a single user request triggers multiple functions. This includes a plethora of specialized agents. For example, a customer support workflow might consist of a natural language understanding agent to understand the query, a reasoning agent to determine the response, and a transactional agent to conduct backend operations.
Another vital function is to ensure fault tolerance and scalability. As the number of tasks and agents increases, orchestration frameworks help scale operations by allocating resources effectively. However, in distributed settings, there are high chances of failures, overloads, and agent crashes. An orchestrator has the skills to detect such problems.
Effective orchestration also consists of handling inputs, outputs, and triggers. As compared to monolithic systems, artificial intelligence agents can partially maintain knowledge or ephemeral states that need to be persisted or shared further. It is the orchestrator that acts as a state manager, maintaining context during agent interactions. This ensures continuity throughout the process.
With Azure Functions and SDKs, the platform enables developers to accelerate the application of orchestration. However, this happens after using code-first techniques that offer control for integration with external systems. The pattern is top-notch for development teams with years of experience in building suitable architectures that are responsive to specific business requirements.
That said, the primary components of orchestration are listed below:

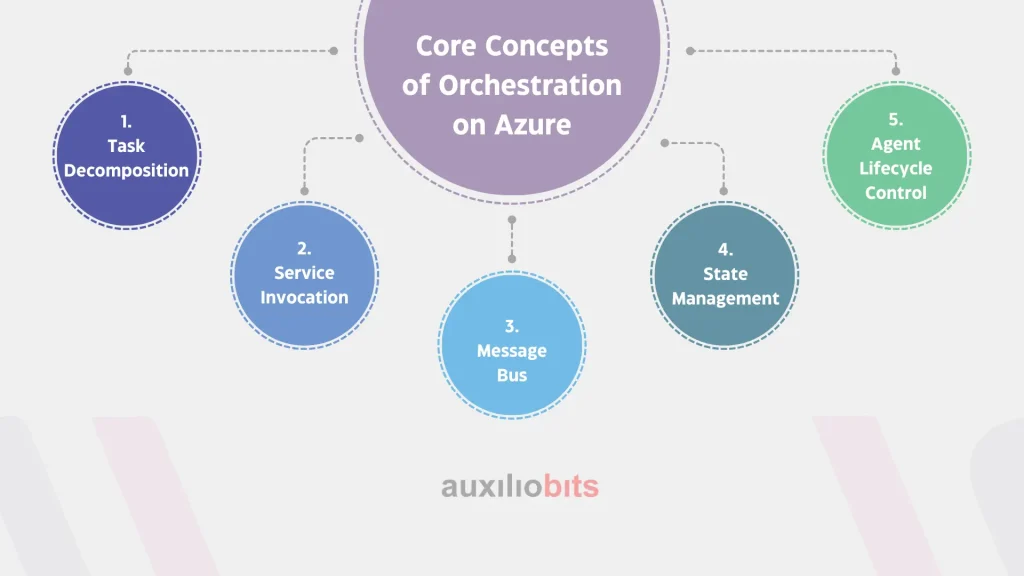

Fig 1: Core Concepts of Orchestration on Azure
1. Task Decomposition
One pivotal function of orchestration is task decomposition. It is the fragmentation of compound user goals into smaller, yet manageable tasks. This enables complex business goals to be broken down into manageable tasks that both AI agents and humans can effectively handle. The AI agents take on their respective tasks and ensure that their operations do not interfere with one another. As a result, this enhances scalability and modularity as both run in parallel.
2. Service Invocation
Another essential function of orchestration is service invocation. Once the tasks are decomposed and allotted further, invoking the respective services to perform the tasks is mandatory. Azure has some advantageous mechanisms that enable the orchestration of the agent’s expertise. Some notable examples include Azure Logic Apps and Azure Functions. Both of them are ideally suited for different orchestration requirements and technical levels.
3. Message Bus
Successful communication among distributed AI agents should not be taken for granted. It is paramount in orchestration, especially within intricate, multi-agent systems. Azure provides high-quality messaging services that serve as a message bus. It allows decoupled messaging among the agents and services. On the other hand, Azure Event Grid is suitable for event-driven, real-time messaging, enabling services and agents to publish and respond to events without undue burden.
4. State Management
Agents often need to maintain conversational or transactional state. Azure supports this through Durable Functions with Durable Entities or via scalable databases, such as Azure Cosmos DB, allowing for persistent, globally distributed state tracking across workflows.
5. Agent Lifecycle Control
For containerized AI agents, Azure provides robust lifecycle management via Azure Kubernetes Service (AKS) or Azure Container Apps. These platforms enable dynamic scaling. Health monitoring and service discovery were essential for managing agent availability and performance.
Together, these components enable the scalable and resilient orchestration of AI agents on Azure.
Key Azure Services for Agentic Systems
Designing and deploying agentic systems on Azure requires a combination of services that support orchestration, communication, computation, and perception. Azure’s cloud-native offerings provide a rich toolkit to build scalable, event-driven, and intelligent multi-agent architectures. Below is a breakdown of key Azure services essential for orchestrating and operating agentic systems effectively:
1. Azure Durable Functions
Durable Functions extend Azure Functions by enabling the creation of long-running, stateful workflows in a serverless environment. They are particularly well-suited for coordinating multi-step agent interactions, such as sequential task execution, fan-out/fan-in patterns, and error handling with retries. For example, an orchestrator function can initiate a series of cognitive agents, such as intent recognition, document summarization, and recommendation generation, while maintaining context across the workflow. The built-in checkpointing and durable timers make this service ideal for resilient, scalable agent coordination.
2 Azure Logic Apps
Logic Apps provide a low-code environment for designing workflows that integrate agents with external systems such as SAP, Salesforce, databases, or messaging platforms. This is especially valuable in enterprise settings where AI agents need to interact with legacy or third-party systems. Logic Apps support hundreds of prebuilt connectors and enable conditional logic, loops, and parallel execution, making it easy to embed AI agents into broader business processes.
3. Azure Kubernetes Service (AKS)
AKS is a managed Kubernetes platform ideal for hosting containerized AI agents that require custom runtime environments or GPU acceleration. For instance, computer vision agents or advanced NLP models may need specific libraries or hardware configurations. AKS offers scalability, autoscaling, load balancing, and built-in monitoring, ensuring that agent clusters can handle variable workloads and high availability demands.
4. Azure Container Apps
Azure Container Apps simplifies the deployment of microservices and containerized agents. It supports both stateless and stateful workloads, integrates with Azure Monitor, and offers built-in scaling based on events (e.g., HTTP requests or queue messages). This service is ideal for lightweight agents that require quick spin-up times and dynamic scaling without the need to manage complete Kubernetes infrastructure.
5. Azure Service Bus
Azure Service Bus is a robust message broker designed for enterprise-grade messaging scenarios. It facilitates decoupled, reliable communication between agents, enabling asynchronous task processing, queue-based workflows, and publish-subscribe models. Features such as message sessions and dead-letter queues support the advanced agent orchestration needs.
6. Azure Event Grid
Event Grid powers event-driven architectures by allowing agents to react to events from Azure services or custom sources. For example, an AI agent can be triggered when a file is uploaded to Blob Storage or when a new customer record is created in a CRM. This enables highly responsive, loosely coupled agent workflows.
7. Azure OpenAI / Cognitive Services
These services form the intelligence layer for many agentic systems. Azure OpenAI provides access to powerful models, such as GPT-4, Codex, or DALL·E, enabling agents to perform reasoning, summarization, code generation, and conversation. Cognitive Services—including Speech-to-Text, Language Understanding, and Vision APIs—equip agents with perceptual capabilities, making them more adaptive and context-aware.
Together, these services offer a flexible and robust foundation for building and orchestrating intelligent, agent-based solutions on Azure.
Communication & Inter-Agent Coordination
Effective communication and coordination are foundational for building scalable and resilient agentic systems. In Azure-based architectures, multiple AI agents—each with a specific role such as classification, reasoning, retrieval, or action—often need to collaborate to fulfill complex workflows. This necessitates structured communication patterns, service discovery mechanisms, and robust observability tools to ensure that agents can work together seamlessly in distributed environments.
A primary method for inter-agent communication is the use of Azure Service Bus, which provides queue- and topic-based messaging. Agents can send messages to queues to initiate tasks or publish to topics to notify multiple subscribers. For instance, an NLU agent might place a structured request on a queue, which a downstream recommendation agent picks up for processing. Topics with subscriptions enable broadcasting updates to multiple agents simultaneously, allowing for coordinated behaviors across the system.
To facilitate service discovery and registration, agents can register themselves with a Directory Agent or Registry, which is often implemented using Azure Cosmos DB or other metadata stores. This registry maintains information about agent capabilities, health status, and endpoints. It serves as a lookup mechanism, enabling orchestrators or other agents to discover dynamically and route requests to the appropriate agent.
Agents also invoke shared services—such as data enrichment APIs, authentication modules, or external AI models—using REST APIs or Azure Functions. These shared services ensure code reuse and centralized governance, reducing the need for agents to duplicate functionality.
For robust coordination, the following design patterns are crucial:
Event Sourcing
Agents can publish domain-specific events (e.g., “invoice validated” or “customer intent detected”) to Azure Event Grid or Service Bus topics, allowing other agents to subscribe and react to events asynchronously. This supports reactive architectures and decouples producer and consumer logic.
Distributed Tracing
In systems with multiple agents and service calls, observability is key. Azure Monitor and Application Insights enable distributed tracing, which tracks the flow of messages and function calls across agents. This is vital for diagnosing issues, measuring latency, and understanding system behavior.
Task Queues
To prevent overloading individual agents, task queues (using Service Bus queues or Azure Storage Queues) act as buffers. They allow agents to pull tasks when ready, promoting load balancing and fault tolerance.
These communication patterns and coordination strategies are essential to ensure that agentic systems remain scalable, fault-tolerant, and observable in real-world deployments.
Security & Governance
In autonomous agent ecosystems, where AI agents operate with varying degrees of autonomy and access to sensitive data, security and governance become non-negotiable. As these agents interact with systems, users, and each other—often across organizational boundaries—it is critical to enforce strict security controls, manage credentials securely, and ensure full compliance with governance policies.
Key Considerations:

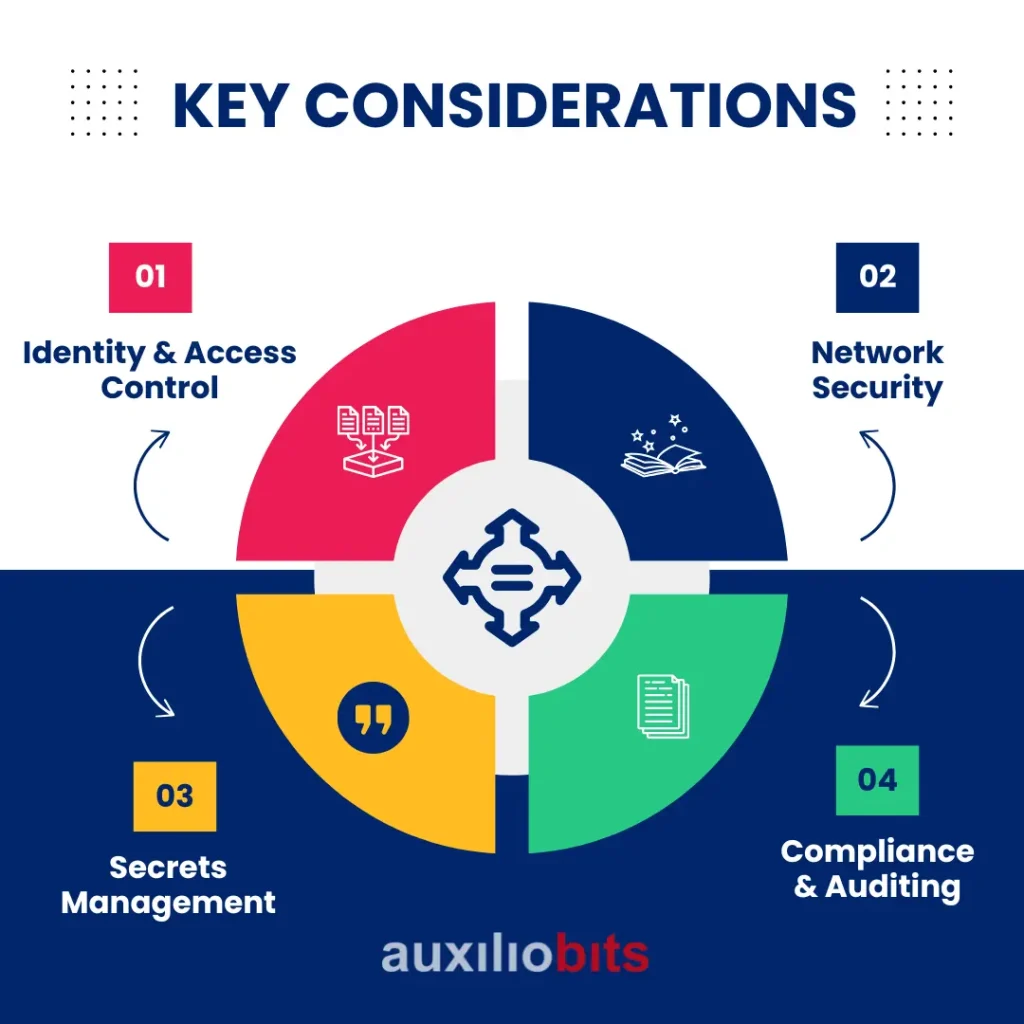

Fig 1: Key Considerations
1. Identity & Access Control
Proper identity management is foundational. Azure Managed Identities allow agents and services to authenticate securely with Azure resources without needing embedded credentials. When combined with Role-Based Access Control (RBAC), you can precisely define what actions each agent or service is permitted to perform. For example, a document-processing agent might be granted read-only access to Blob Storage, while a transactional agent has write permissions to a database. This principle of least privilege significantly reduces the attack surface.
2. Network Security
Securing agent communication pathways is essential to prevent unauthorized access or data leakage. Azure provides Virtual Networks (VNets) to segment agent environments, Network Security Groups (NSGs) to filter traffic, and Private Endpoints to ensure that sensitive data traffic stays within the Azure backbone. These tools help isolate agents from public networks and restrict communication only to trusted services.
3. Secrets Management
Agents often need to interact with APIs, databases, or external services that require credentials. Storing secrets in code is a risky and error-prone practice. Instead, Azure Key Vault provides a secure, centrally managed repository for API keys, tokens, certificates, and other secrets. Agents can access these secrets securely at runtime using Managed Identity authentication.
4. Compliance & Auditing
Governance and auditability are critical in regulated industries. Azure Policy helps enforce organizational standards, such as encrypting all storage or restricting public endpoints, while Microsoft Defender for Cloud offers continuous security posture monitoring and threat protection. Audit logs and compliance reports ensure traceability, helping organizations meet regulatory requirements, such as the GDPR or HIPAA.
Together, these measures create a robust security framework for managing AI agents in production environments.
Conclusion
As artificial intelligence becomes increasingly embedded in enterprise systems, orchestrating AI agents efficiently is no longer optional—it’s essential. Azure provides a powerful and flexible platform for building, managing, and scaling agile systems by combining event-driven architectures, containerized services, a robust messaging infrastructure, and AI capabilities. Whether you’re creating simple task agents or a complex, multi-agent ecosystem, Azure offers the tools needed to manage interactions, state, scalability, and resilience.
